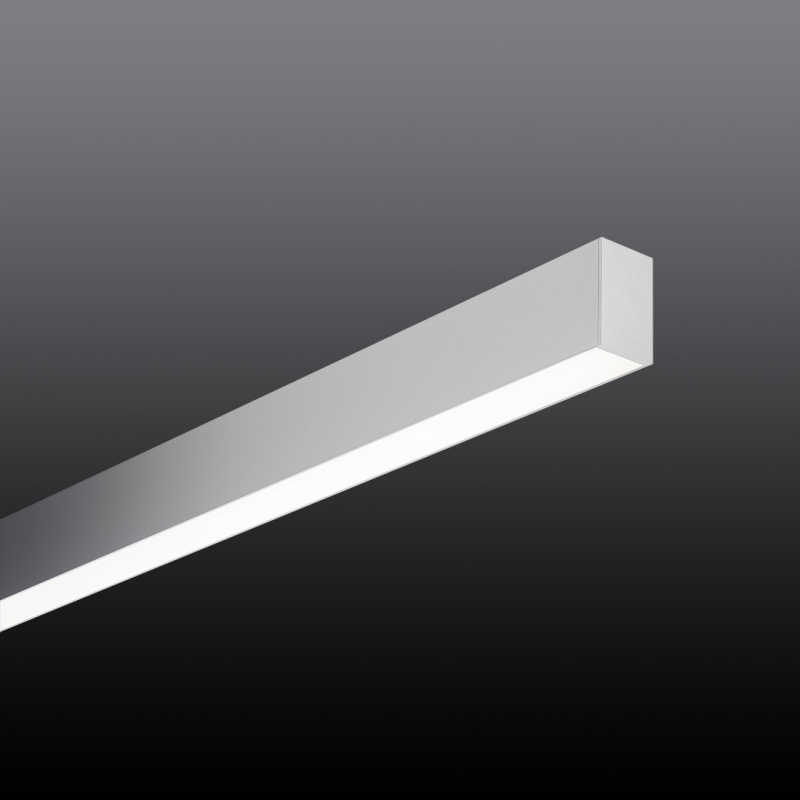

05.18006523-9999 - Maze - I - Surface-mounted - satin - HO 150mA - RAL - RAL colour at your choice

Fixture details

Mounting Ceiling
Light emission Direct
Fitting cover Satin diffusor
Protection rate IP 20
Housing Aluminium
Finish RAL colour at your choice

Lamp details

Lamptype LED 3000K
Wattage 3,2W
Gross luminous flux 1280
Luminaire power 7W
Number 2
Lifetime LED module L80/B10 > 72000h
Color tolerance MacAdam 3
CRI 80

Electric details

Protection class I
Supply 230V
Control gear box Power supply - 2 supply points

Protection

CIE Fluxcode 49 80 96 100 66

Dimensions

Downloads

12.00920-0101 - Lampshade - I - Height 200mm - white/white

12.00920-0102 - Lampshade - I - Height 200mm - white/black

12.00920-0201 - Lampshade - I - Height 200mm - black/white

12.00920-0301 - Lampshade - I - Height 200mm - gold/white

12.00920-0302 - Lampshade - I - Height 200mm - gold/black

12.00920-0398 - Lampshade - I - Height 200mm - gold/brown leather

12.00940-0101 - Lampshade - I - Height 400mm - white/white

12.00940-0102 - Lampshade - I - Height 400mm - white/black

12.00940-0201 - Lampshade - I - Height 400mm - black/white

12.00940-0301 - Lampshade - I - Height 400mm - gold/white

12.00940-0302 - Lampshade - I - Height 400mm - gold/black

12.00940-0398 - Lampshade - I - Height 400mm - gold/brown leather

12.00960-0101 - Lampshade - I - Height 600mm - white/white

12.00960-0102 - Lampshade - I - Height 600mm - white/black

12.00960-0201 - Lampshade - I - Height 600mm - black/white

12.00960-0301 - Lampshade - I - Height 600mm - gold/white

12.00960-0302 - Lampshade - I - Height 600mm - gold/black

12.00960-0398 - Lampshade - I - Height 600mm - gold/brown leather

12.03912-0000 - Grid B 1050x1650mm

12.03931-0000 - Grid G 1650x3450mm

12.03932-0000 - Grid H 1650x3450mm

12.03941-0000 - Grid I 1650x4650mm

12.03961-0000 - Grid J 3450x3450mm

12.03981-0000 - Grid K 3450x4650mm
