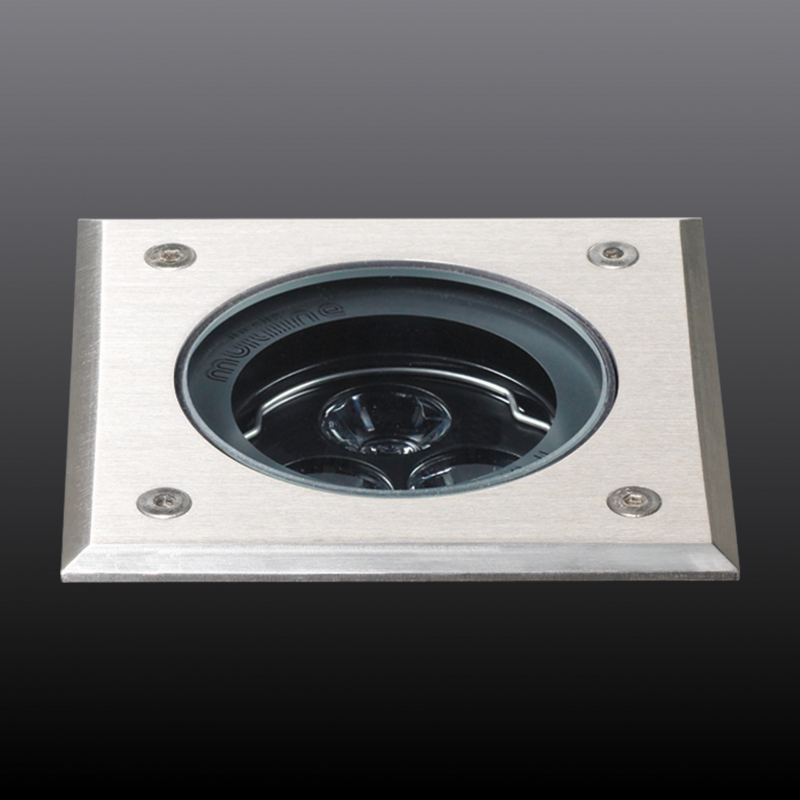

36.20091-0000 - Metro-D 100x100mm - 20° ajustable - without recessed housing Matt black finish RAL 9105
Fixture details
| Mounting | Ground - recessed |
| Light emission | Indirect - adjustable |
| Light distribution | Adjustable |
| Fitting cover | Glass |
| Protection rate | IP 67 |
| Maximum load | 1000 kg walk-across (excluding recessing housing) |
| T° | <75 ° |
| Housing | Aluminium/Stainless Steel |
| Finish | Matt black finish RAL 9105 |
Lamp details
| Gross luminous flux | 378 |
| Luminaire power | 4,2W |
| Cover glass | Flat - clear |
| Number | 1 |
| Lifetime LED module | L70/B50 > 60000h |
| Color tolerance | MacAdam 3 |
| CRI | 80 |
Electric details
| Protection class | III |
| Supply | 24V DC |
Protection
| CIE Fluxcode | 0 0 0 0 73 |
Dimensions
Downloads
Accessories
30.60530-0025 - Glass Ø68 clear
30.60530-0040 - Glas Ø68 clear slipfree
30.60510-0000 - Gasket for glass Ø68
30.60646-0000 - Recessing housing for glass Ø68
30.60010-0000 - Suction cup for glass
30.60012-0000 - Wiring connection box IP65 4x PG16
30.60050-0000 - male connector and sealed cable connection
30.60051-0000 - cable plug with 1 cable entry and 1 female socket
IP65 socket for rigid cable Ø10-14mm/3x1,5-4mm²
30.60052-0000 - cable plug with 2 cable entries and 1 female socket
IP65 plug for rigid cable Ø10-14mm/3x1,5-4mm²
30.60063-0000 - cable plug with 1 male socket and 3 female sockets
for rigid cable Ø10-14mm/3x1,5-4mm²
30.60900-0000 - one-time cost electrolytic polishing
30.60902-1010 - Electrolytic polishing Metro 100x100
16.98124-0018 - LED driver 18W 24V - IP67 - 140x30x22mm
16.00193-0000 - LED driver 130W 24V - IP66 - 220x63x37mm
